Torque300+ Flash

$ 935.00

Model Year
Flashing Option
Quantity

Details

Currently accepting mail in ECU flashing only for 2005-2007 White Dash Cars. Black Dash cars, 2008 and later can mail in or purchase the flash cable and receive an emailed tune.

NOW Compatible with BOTH white and black dash cars

Tune Request Forms can be found in the Support Section and MUST BE COMPLETED AND SUBMITTED TO sales@boefabrication.com WITH YOUR ORDER.  Delays may be experienced during busy season.

We call it Torque300+ because that's immediately what comes to mind when you drive a car with this flash! The BOE Fastworks ECU Editor has unlocked all the performance tables in the ECU unlike anything else available in the Lotus market. We have combined years of standalone race ECU tuning and experience with the OEM ECU and built the the best flash you can buy for your Lotus Exige/Cup/211.

We will custom tailor this flash tune for modifications such as different pulleys, injectors, specific intake systems, headers, cams, etc. The Tune Request Form (TRF), which will be provided by email after purchase, is required to complete the tune.





Check out the Exige Power Recipe in our Tech Section

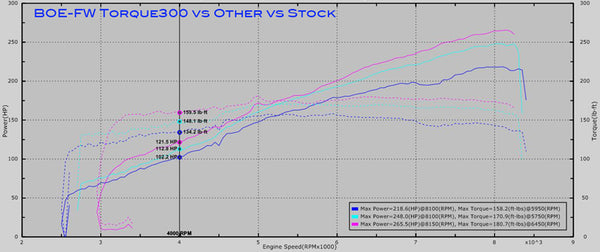

DYNO COMPARISON

WE STARTED OUT WITH AN EXIGE THAT HAD A 3" PULLEY AND AN UPGRADED FUEL PUMP AND AS EXPECTED IT PUT DOWN 218 HP AS OUR STOCK PULL. NEXT WE UPLOADED A LEADING AFTERMARKET TUNE WHICH INCREASED POWER OUTPUT BY A RESPECTABLE 30WHP. FINALLY WE UNLOCKED WHAT WE FEEL IS THE MAXIMUM SAFE POTENTIAL OF THE VEHICLE WITH OUR SPECIALLY TAILORED TORQUE300+ TUNE. THE DIFFERENCE WAS AMAZING AS IT ADDED NEARLY 47WHP AND 22FT/LB OF TORQUE AT THE WHEELS.



Optional

525 EV-14 INJECTORS

WALBRO 255 LPH FUEL PUMP

Click here for Fueling Products

THE TORQUE300 FLASH WILL TAKE THE STOCK FUELING SYSTEM TO ITS LIMITS. THE EXIGE RANGE COMES WITH 440CC INJECTORS AND THEY WILL RUN TO 100% DUTY CYCLE WITH THIS TUNE (STATIC OR 100% OPEN). THIS IS NOT A GOOD SITUATION, AS THE ECU IS LOSING CONTROL OF THE FUELING DEMANDS OF THE MOTOR. WHILE MANY ARE RUNNING THIS WAY AND HAVE BEEN SUCCESSFUL WITH IT, IT IS FAR SUPERIOR TO RUN A PROPERLY SIZED INJECTOR. WHILE NOT ABSOLUTELY REQUIRED, ADDING THE BOSCH EV-14'S TO YOUR TUNE AND BUILD IS A GOOD PLAN. THEY ARE SOME OF THE BEST INJECTORS AVAILABLE. THEY HAVE EXTREMELY LOW INTERNAL MASS AND ARE VERY RELIABLE. EACH SET COMES WITH ADAPTERS TO THE LOTUS HARNESS AND A FLOW SHEET TO SHOW THE SET IS BALANCED. ADDITIONALLY, THE OEM FUEL PUMP WILL BE AT ITS LIMIT ON CARS NOT EQUIPPED WITH A LARGER FUEL PUMP FROM FACTORY, AND IT IS RECOMMENDED TO FIT THE WALBRO 255LPH PUMP IN THIS CASE.

Optional

3IN INTAKE SYSTEM

Click here for Intake Products

IT'S WIDELY UNKNOWN THE STOCK MAF TUBE IS TOO SMALL FOR A GOOD BREATHING 2ZZ-GE! THE MAF IN THE STOCK ~2.55" INLET MAXES OUT AT 5 VOLTS ON EXIGE'S WITH OUR TUNE WELL BEFORE PEAK LOAD IS MEASURED. THIS IS NOT IDEAL, AS THE ECU IS RUNNING THE MOTOR “IN THE DARK" ON THE WAY TO REDLINE. IF YOU ADD OUR 3" CAI TO THE ORDER, WE RECALIBRATE THE MAF TABLES IN THE TUNE TO ENSURE THAT YOU CAN SAFELY TAKE THE 2ZZ-GE TO THE LIMITS ON STREET OR TRACK.

Optional

3.0" Pulley

Click Here for Pulley

 If you wish to get a bit more boost, we recommend a 3.0” pulley, but no smaller. The faster you spin the blower, the harder it is to shed the additional heat. Therefore, effective intercooling becomes more and more difficult and expensive. It is highly recommended to increase airflow to the intercooler, and/or upgrade to a RLS intercooler. For reference, the stock pulley is about 3.25”.

Optional

NGK BKR7-EIX Spark Plugs

Click Here for Sparks

When asking more of the engine by way of forced induction, it is important to reduce the heat range of the spark plugs, and also decrease the gap on the electrode to prevent the spark from being "blown out".  The NGK BKR7-EIX plugs are what we supply with our supercharger kits, and are an Iridium OEM quality plug.


ALL SPARK, FUEL, CAM, KNOCK SENSOR CALS, IDLE, AND CORRECTION MAPS OPTIMIZED. EACH FLASH IS SURE TO HAVE SUBSTANTIAL POWER GAINS AND MORE CUSTOMIZED FEATURES THAN ALL OTHER AFTERMARKET TUNERS (OR LOTUS TUNES!). TUNES ARE CUSTOMIZABLE WITH A TUNE REQUEST FOR THE FOLLOWING:

  • CAT DELETE “MIL KILL"
    • SHIFT LIGHT INDICATOR PER GEAR
    • REV LIMITER: COLD AND HOT
    • INJECTOR SIZE
    • STOCK OR SELECT AFTERMARKET INTAKES
    • AFTERMARKET CAM SHAFTS
    • IDLE SPEED
    • FUEL INJECTOR SIZE
    • EXHAUST MODIFICATIONS
  •
